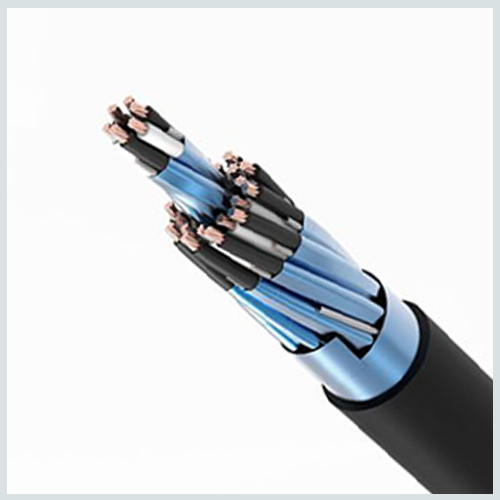

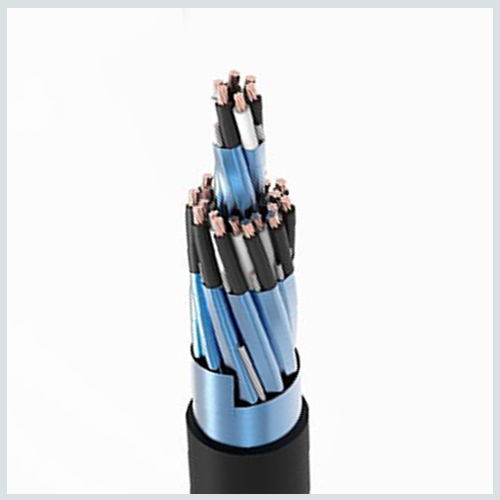

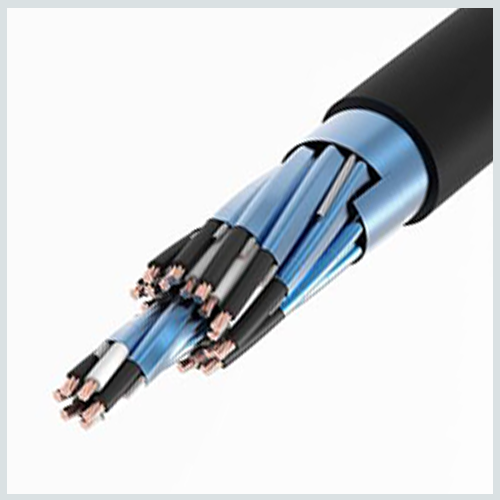

Instrumentation Cable

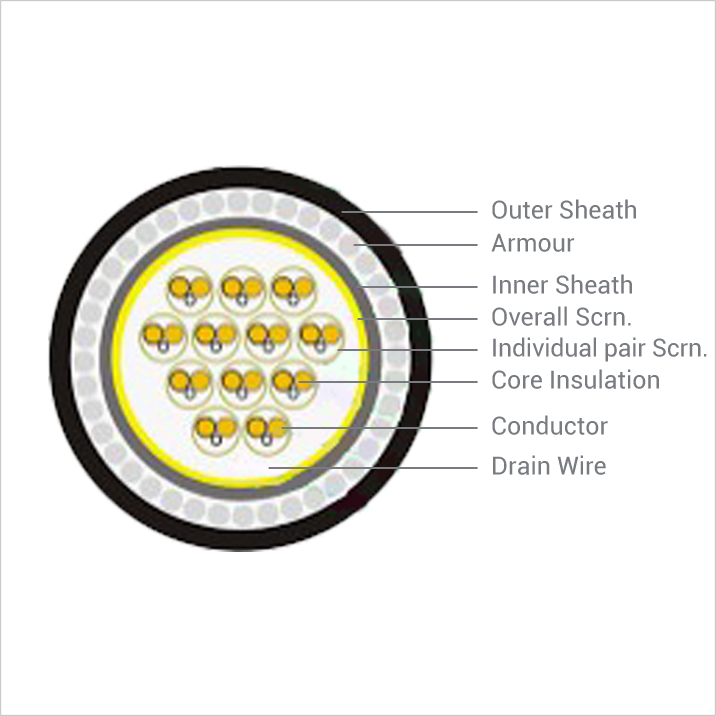

Conductor:
  • Copper
  • Kx / Jx / Tx / Rx / Sx / Ex
  • Tin Copper
  • Silver Plated Copper
  • Single Strand / Multi Strand
Insulation:
  • PVC / XLPE
  • Halogen Free
  • Cross Linked Halogen free
  • EPR
  • Silicon
  • XLPO
Individual Shielding (Screening):
  • Aluminium Mylar Tape along with Tin Copper Drain Wire
  • Copper Wire Braid
Overall Shielding (Screening):
  • Aluminium Mylar Tape along with Tin Copper Drain Wire
  • Copper Wire Braid
Inner Sheath:
  • PVC (HR/FR/FRLS)
  • Rubber
  • EVA
  • LSOH
  • LFH
  • XLPO
  • SHF1, SHF2, SE, SH
Armouring:
  • Galvanised steel armoured
  • Steel Wire Braid
  • Copper Braid
Outer Sheath:
  • PVC (HR/FR/FRLS)
  • LSOH
  • Rubber
  • EVA
  • LFH
  • XLPO
  • SHF1, SHF2, SE, SH
Sizes:
  • 0.20 Sq mm - 1.5 Sq mm
  • 1 Pair - 100 Pair
  • Upto 1100 Volts
Applicable Standards:
  • IEC60092-376, IEC60092-360, ANSI96.1, BS 50288-7, BS 5308
