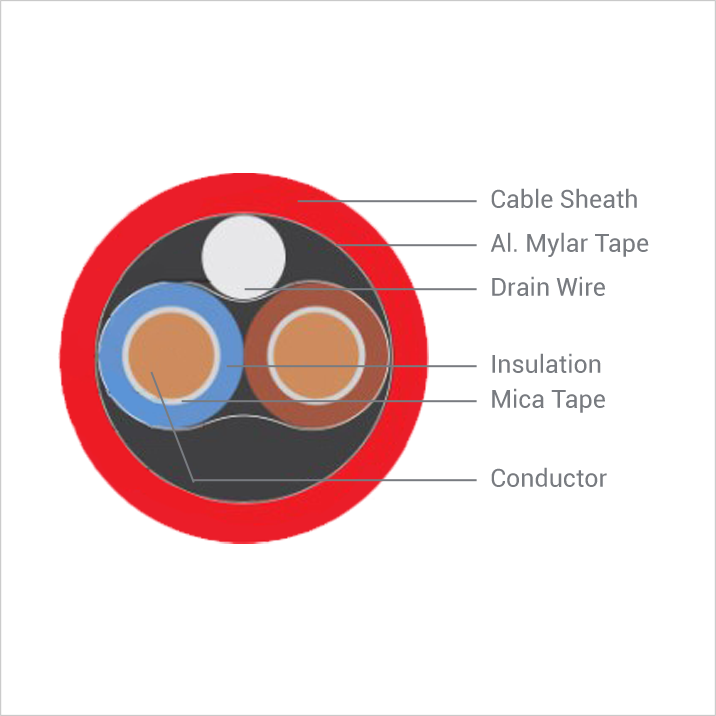

Fire Safe Cable
Conductor:
  • Tinned Copper Conductor
  • Single Strand / Multi Strand
  • Kx / Jx / Tx / Rx / Sx / Ex
Insulation:
  • Mica Tape with XLPE / PVC
  • Silicon with Glass Fibre Braid
  • Halogen Free
  • Cross Linked Halogen free
  • XLPO
Individual Shielding-Screening:
  • Aluminium Mylar Tape along with Tin Copper Drain Wire
  • Copper Wire Braid
Overall Shielding (Screening):
  • Aluminium Mylar Tape along with Tin Copper Drain Wire
  • Copper Wire Braid
Inner Sheath:
  • Rubber
  • EVA
  • LSOH
  • LFH
  • XLPO
  • SHF1, SHF2, SE, SH
Armouring:
  • Galvanised steel armoured
  • Steel Wire Braid
  • Copper Braid
Outer Sheath:
  • HDPE
  • PVC (HR/FR/FRLS)
  • LSOH
  • Rubber
  • EVA
  • LFH
  • XLPO
  • SHF1, SHF1, SE, SH
Sizes:
  • 0.20 Sq mm - 1000 Sq mm
  • 2C – 61C
  • 1C / 2 C / 3C / 3.5C / 4C
  • 1 Pair - 100 Pair
  • Upto 1100 Volts
Applicable standards:
  • IEC60092-350, IEC60092-360, IEC60331
